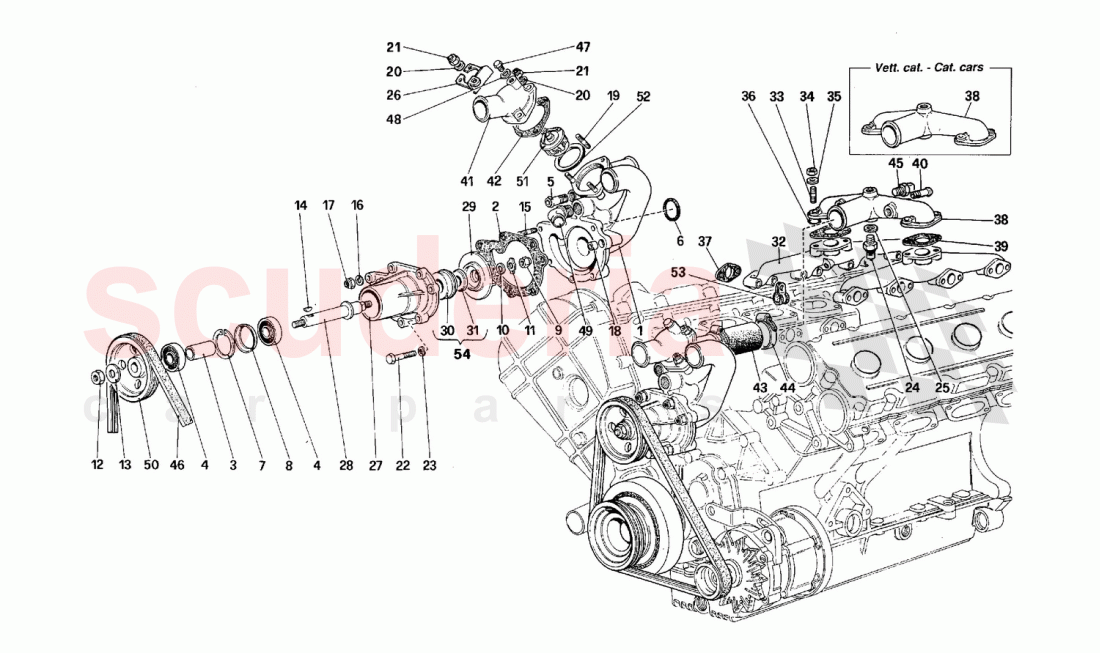

Ferrari Yedek Parça - 288 GTO - Water Pump and Pipings
Parça Kodları
No
Kod
Parça Adı
27
121255
water pump
1
120656
Water pump body
1
120654
Water pump body, complete
1
120653
Water pump complete
2
135121
Gasket
3
116157
Spacer
4
116159
Bearing
5
106227
Fitting
6
105196
Sealing ring
7
11060076
Seeger Ring
8
116158
Washer
9
100436
BLIND NUT
10
10730321
WASHER
11
100434
Safety plate
59
148020
NUT
13
11198673
Washer
14
10205110
Tongue
15
11500124
STUD BOLT
26
11197774
Washer
25
14039614
NUT
18
102704
CENTRING DOWEL
19
11500524
STUD BOLT
22
16044424
SCREW
23
12601374
Washer
24
11500224
STUD BOLT
28
121253
Splindle for pulley
29
121254
Impeller
31
152051
Complete sealing ring
32
138852
WATER MANIFOLD
33
13516824
STUD BOLT
34
14040711
NUT
35
11198074
WASHER
36
103039
Sealing ring
37
132980
GASKET
38
120793
Junction pipe to water outlet manifolds
39
132981
GASKET
40
106241
Fitting
41
105165
Water outlet union
42
105189
Gasket
65
121258
Sleeve
61
12180090
Clamp
45
121927
Tube
46
147772
Gasket
47
16042940
Screw
48
10260060
Gasket
49
122844
Fitting
50
121655
Control belt for water pump
51
123018
Pulley
52
123019
Mounting
53
121659
Pulley
54
105038
Sealed Ball Bearing 9Mm Wide
55
105048
Pin
56
107841
Spacer
57
107842
Spacer
58
11059076
Seeger Ring
60
103025
Washer
62
109671
Thermostat
63
105192
GASKET
64
104628
GEARBOX THERMISTOR
