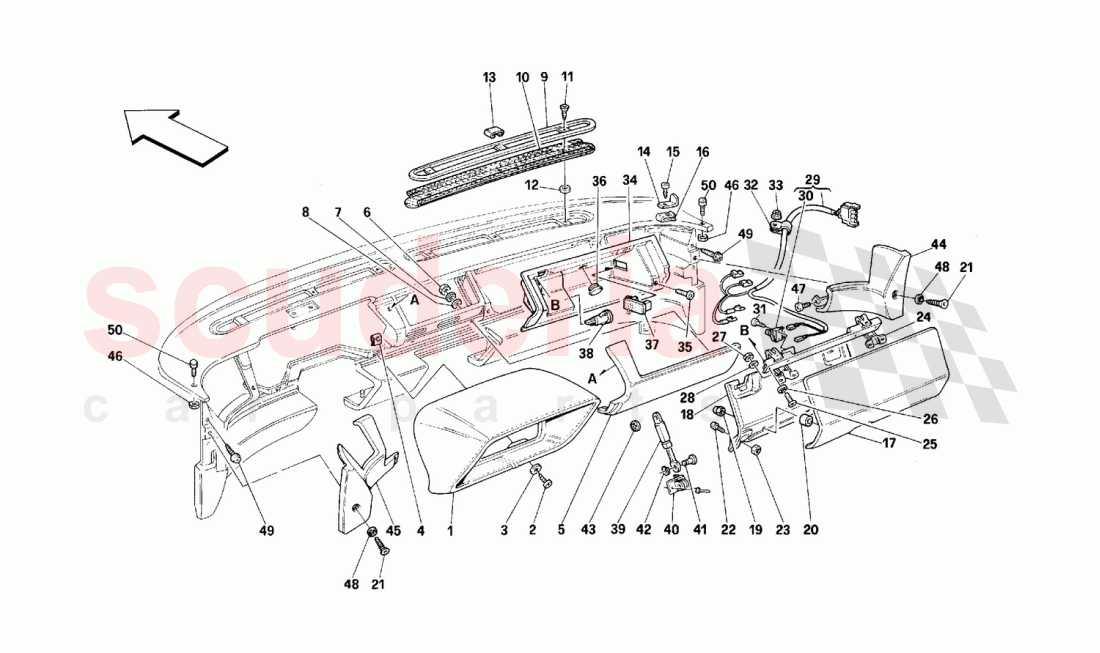

No

Kod

Parça Adı

-

62137700

UPHOLSTERY -Not for GD-

-

62191500

UPHOLSTERY -Valid for GD-

-

62190800

COVERED R.H. LATERAL INSERT

-

62137300

UPHOLSTERY -Not for GD-

-

62190900

UPHOLSTERY -Valid for GD-

-

62191300

COVERED L.H. LATERAL INSERT

-

62192100

GLOVE BOX INNER INSERT

-

62868900

LID HINGE -Valid for GD-

-

62989800

SPACER BUSHING

-

62192600

COVERED DOOR

-

62141300

UPHOLSTERY -Not for GD-

-

62192900

UPHOLSTERY -Valid for GD-

-

62190500

UPHOLSTERY -Valid for GD-

-

62190300

COVERED CENTRAL INSERT

-

62136900

UPHOLSTERY -Not for GD-

-

62192300

COVERED INSTRUMENTS PANEL

-

62847900

UPHOLSTERY

1

62139900

COVERED INSTRUMENTS PANEL

2

15644175

Screw

3

10519278

WASHER

4

61067800

FIXING BRACKET

5

62136600

COVERED CENTRAL INSERT

46

15896470

NUT

7

12601174

Washer

28

14496324

WASHER

9

62186800

AIR OUTLET PLATE

10

62880800

AIR OUTLET GRID SHIELD

21

63291400

SCREW -Not for GD-

12

63622400

WASHER

13

62880900

SCREW COVER PLATE

14

63014000

RH ANGLE PIECE SUPPORT

15

15644101

SCREW

16

60674700

SCREW BRACKET

17

62141000

COVERED DOOR

18

62141500

DOOR INNER OVERLAP

19

62990500

NUT

20

62989700

SPACER BUSHING

50

62453200

STOP PIN

24

62141600

LID HINGE-Not for GD-

25

13274472

SCREW -M5 X 20- -For carbon fibre surround-

26

12638178

Washer

29

145449

DASHBOARD GLOVE BOX CABLES

30

141013

MICRO SWITCH

31

64693500

SCREW

32

10418301

Clamp (Ø 8 mm)

33

13831801

NUT

34

62138400

GLOVE BOX INNER INSERT

35

149950

Screw

36

14507897

PLUG

37

139517

LUGGAGE COMPARTMENT LIGHT

38

139955

SOCKET

39

62830600

Door Gas Spring

41

62162800

PIN

42

11087576

Snap Ring

43

62831000

CLIP

44

63287400

COVERED R.H. LATERAL INSERT

45

63287500

COVERED L.H. LATERAL INSERT

47

20297602

Screw -Valid for CDN, SA, J-

48

63345700

WASHER -Not for GD-

49

15785101

SCREW
