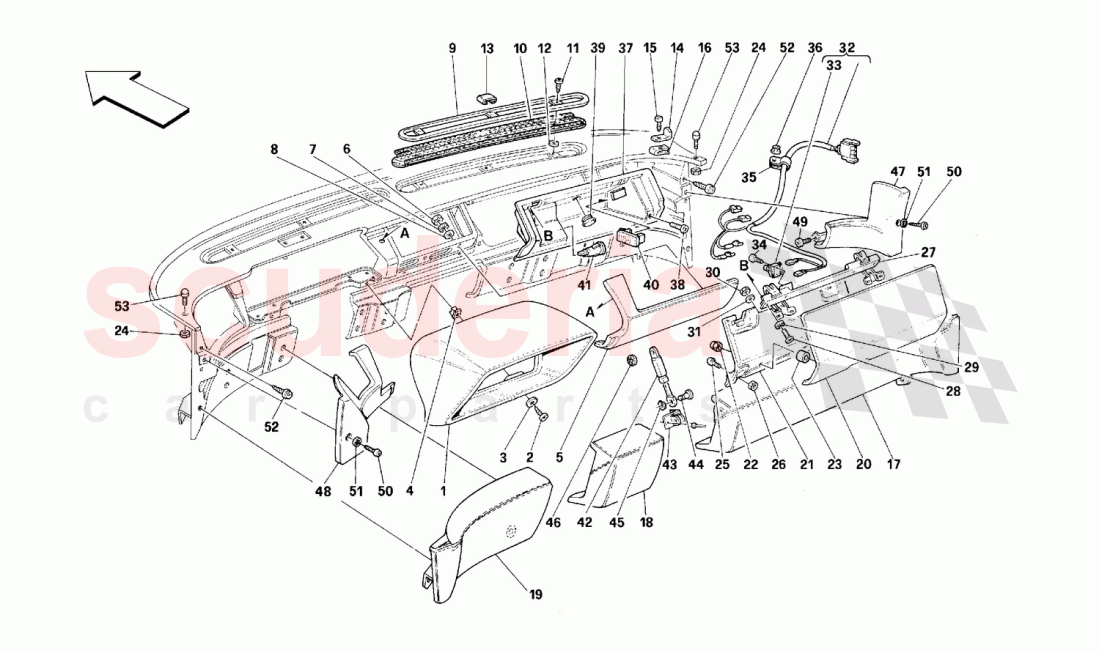

No

Kod

Parça Adı

-

62137300

UPHOLSTERY -Not for GD-

-

62137700

UPHOLSTERY -Not for GD-

-

62989800

SPACER BUSHING

-

622239

UPHOLSTERY

-

62141300

UPHOLSTERY -Not for GD-

-

622234

UPHOLSTERY

-

622229

UPHOLSTERY

-

62136900

UPHOLSTERY -Not for GD-

-

62847900

UPHOLSTERY

1

62139900

COVERED INSTRUMENTS PANEL

2

15644175

Screw

3

10519278

WASHER

4

14115980

BLOCK-Valid for USA-

5

62136600

COVERED CENTRAL INSERT

30

15896470

NUT

7

12601174

Washer

31

14496324

WASHER

9

62186800

AIR OUTLET PLATE

10

62880800

AIR OUTLET GRID SHIELD

50

63291400

SCREW -Not for GD-

12

63622400

WASHER

13

62880900

SCREW COVER PLATE

14

63014000

RH ANGLE PIECE SUPPORT

15

15644101

SCREW

16

60674700

SCREW BRACKET

17

622233

R.H. LATERAL LOWER INSERT

18

622228

CENTRAL LOWER INSERT

19

622238

L.H. LATERAL LOWER INSERT

20

62141000

COVERED DOOR

21

62141500

DOOR INNER OVERLAP

22

62990500

NUT

23

62989700

SPACER BUSHING

53

62453200

STOP PIN

27

62141600

LID HINGE-Not for GD-

28

13274472

SCREW -M5 X 20- -For carbon fibre surround-

29

12638178

Washer

32

145449

DASHBOARD GLOVE BOX CABLES

33

141013

MICRO SWITCH

34

64693500

SCREW

35

10418301

Clamp (Ø 8 mm)

36

13831801

NUT

37

62138400

GLOVE BOX INNER INSERT

38

149950

Screw

39

14507897

PLUG

40

139517

LUGGAGE COMPARTMENT LIGHT

41

139955

SOCKET

42

62830600

Door Gas Spring

44

62162800

PIN

45

11087576

Snap Ring

46

62831000

CLIP

47

63287400

COVERED R.H. LATERAL INSERT

48

63287500

COVERED L.H. LATERAL INSERT

49

20297602

Screw -Valid for CDN, SA, J-

51

63345700

WASHER -Not for GD-

52

15785101

SCREW
