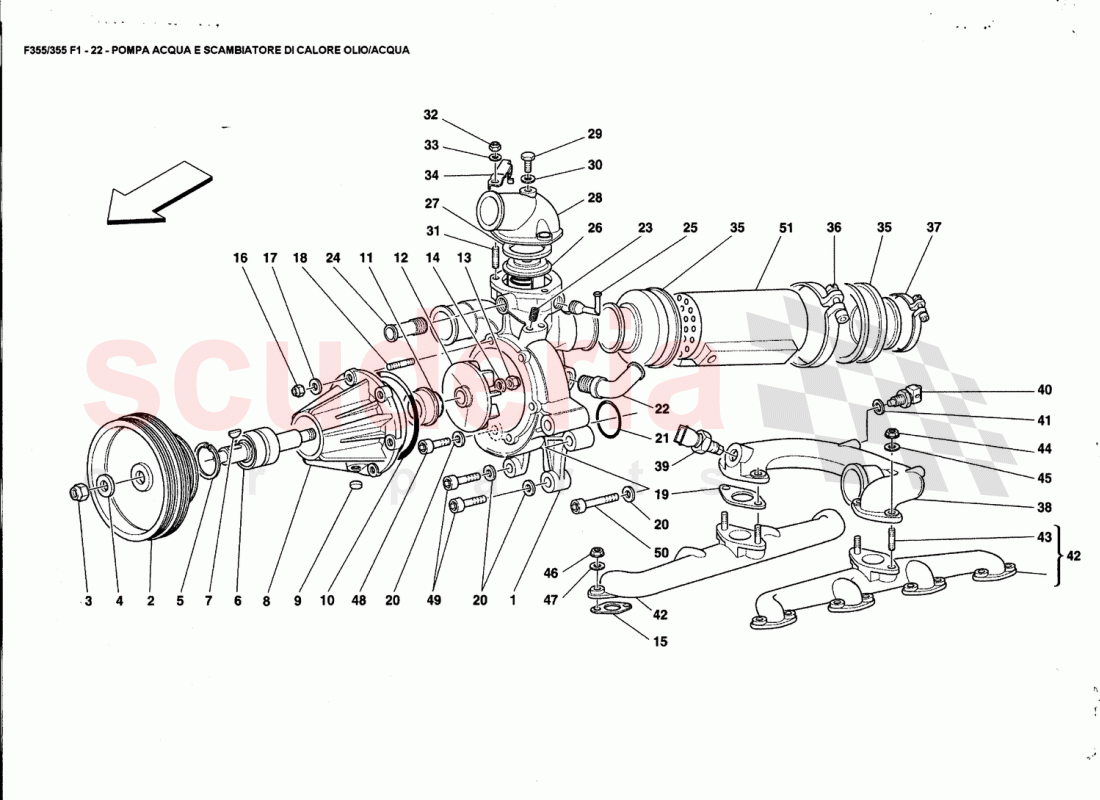

No

Kod

Parça Adı

8

176173

WATER PUMP COVER

1

163875

WATER PUMP BODY

2

158014

WATER PUMP CONTROL PULLEY

3

102742

Nut

4

12647021

WASHER

5

11059976

SEEGER RING

6

143742

BEARING WITH SHAFT

7

10202320

Disc Tab

9

9162535

THREADED PLUG

10

137868

O-Ring

11

183759

Seal Ring

12

154542

WATER PUMP IMPELLER

13

100436

BLIND NUT

14

84653800

WASHER

15

141332

GASKET

46

14039614

NUT

47

11197774

Washer

18

13540924

STUD BOLT

19

152362

GASKET

45

12601374

Washer

21

101044

O.R. Gasket

22

122844

Fitting

23

13525570

THREADED INSERT

24

106227

Fitting

25

157400

UNION

26

165473

THERMOSTAT

27

105192

GASKET

28

136571

THERMOSTATIC VALVE COVER

29

132349

CONNECTOR

30

10297760

Gasket

31

13541024

STUD BOLT

34

163856

BRACKET

35

145015

SLEEVE

36

153430

Clamp - D. 85 mm.-

37

153429

CLAMP - D. 50 mm.-

38

162450

WATER OUTLET MANIFOLD CONNECTION DUCT

39

148677

Water Temperature Transmitter

40

125769

Water Temperature Transmitter

41

10298460

Gasket

42

154450

COMPLETE WATER OUTLET MANIFOLD

43

13516724

STUD

44

14040711

NUT

48

14306424

SCREW

49

14306624

Screw

50

285494

SCREW

51

180846

Water-Oil Heat Exchanger
