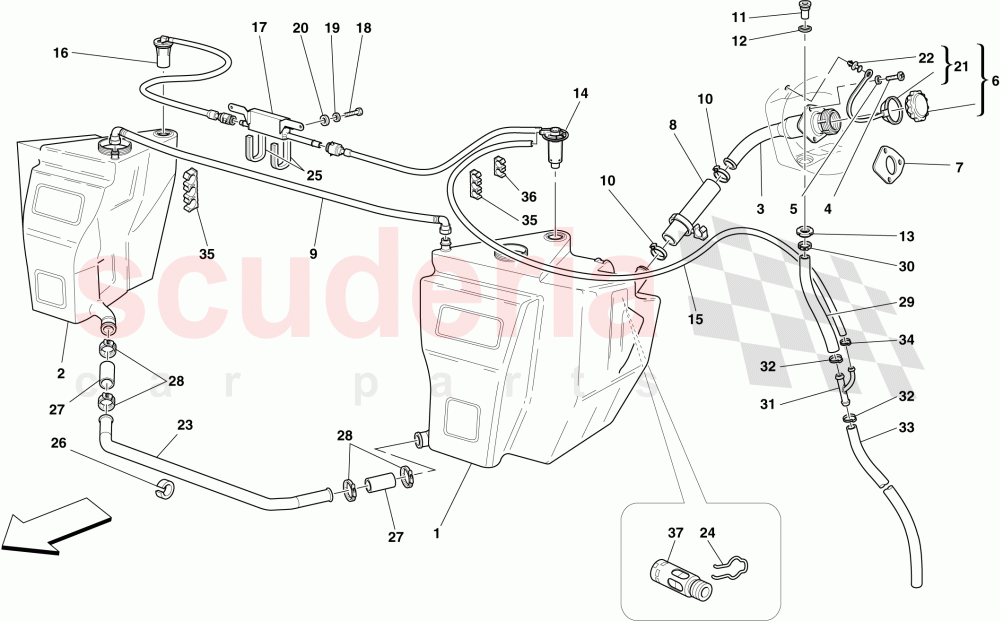

No

Kod

Parça Adı

1

248139

LH FUEL TANK

2

231404

RH FUEL TANK

3

231930

PIPE UNION

4

64686900

SCREW

5

11197774

Washer

6

190469

TANK CAP

7

235256

GASKET

8

232567

FUEL FILLER NECK CONNECTOR PIPE

9

244830

TANK AIR BUBBLE CONNECTOR PIPE

10

10718670

Collar

11

64872000

PIPE CONNECTOR

12

65064500

GASKET

13

104919

RING NUT

14

243907

VALVE WITH LH PIPE

14

208895

VALVE WITH LH PIPE

15

211283

RUBBER PIPE

16

208894

VALVE WITH RH PIPE

16

243908

VALVE WITH RH PIPE

17

209010

VAPOUR SEPARATOR

17

244882

VAPOUR SEPARATOR

18

62940900

Screw

19

127494

Washer

20

10523424

WASHER

21

196949

RING

22

186172

CLIP

23

224755

TANK CONNECTOR PIPE

24

181930

CLIP

25

69101300

VIBRATION DAMPER

26

177437

RUBBER SHIM

27

241179

RUBBER PIPE

28

180957

SCREW COLLAR

29

213294

TRAY-TO-3-WAY TUBE

30

177553

Clamp

31

195439

THREE-WAY UNION

32

13433570

COLLAR FOR HOSE UNION

33

213295

3-WAY-TO-REAR TUBE

34

13432270

Collar for Hose Union

35

183098

CLIP

36

140727

Fastener Clip

37

181929

SHUT-OFF VALVE

37

237407

SHUT-OFF VALVE
