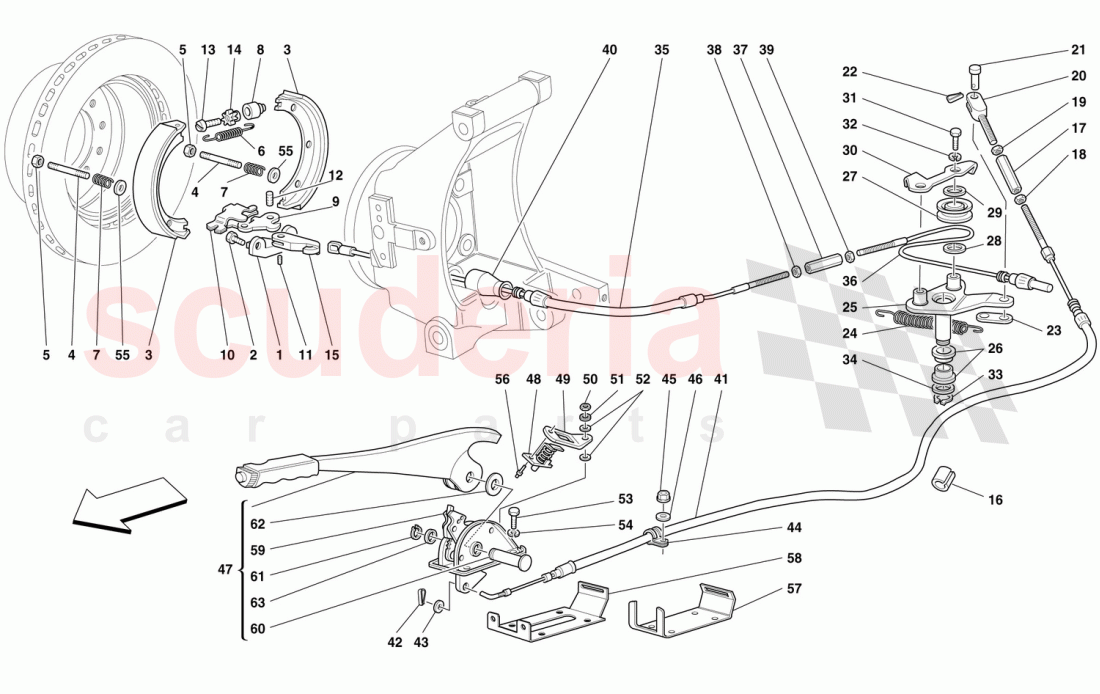

No

Kod

Parça Adı

-

657538

LINING

-

156122

LEVER -Valid for GD-

-

158694

SMALL PLATE -Valid for GD-

1

142861

HUB HOLDER SMALL BLOCK

2

142856

SCREW

3

178382

Complete Brake Shoe

4

13539224

STUD

5

14058319

NUT

6

101276

RETURN SPRING FOR BRAKE SHOES

7

177625

BRAKE SHOE SPRING

8

101279

SEAT FOR ADJUSTMENT SCREW

9

101280

Inner Control Lever

10

101281

Outer Control Lever

11

101282

FIXING FORK TO INNER LEVER PIN

12

101283

Pin for joint

13

101285

SCREW

14

101286

Nut for adjusting screw

15

105270

Inner lever control fork

16

152913

RUBBER HOSE

17

152302

ADJUSTMENT SLEEVE

18

16102314

NUT

19

16102914

L.H. THREADED NUT

20

152301

FORK

21

10050814

PIN

22

10734208

SPLIT PIN

23

152303

SMALL PLATE

24

104895

SPRING

25

152279

LEVER -Not for GD-

26

152273

BUSHING

27

175780

PULLEY

28

152617

WASHER

29

109483

WASHER

30

152299

SMALL PLATE -Not for GD-

31

10977524

SCREW

32

11193274

WASHER

33

11066476

Seeger Ring

34

152300

WASHER

35

152297

R.H. REAR CABLE

36

152298

L. H. REAR CABLE

37

10091014

SLUG TUNER

38

10727314

NUT

39

312592

NUT

40

143938

STOP LIMIT FOR HAND BRAKE SHEATH

41

154180

HAND-BRAKE CONTROL CABLE

42

264555

SPLIT PIN

43

84653800

WASHER

44

10441290

BRACKET WITH SHEATH

45

14039614

NUT

46

12639724

Washer

47

154095

HAND BRAKE LEVER

48

169292

SWITCH

49

169291

SUPPORT BRACKET

50

15896470

NUT

51

12601174

Washer

52

63622400

WASHER

53

16286127

SCREW

54

127494

Washer

55

12637824

WASHER

56

50084409

RIVET

57

64051200

SUPPORT

58

65562800

BRACKET

59

191634

COMPLETE MECHANISM

60

191635

PIN

61

191638

Seeger Ring

62

191636

WASHER

63

191637

SPACER WASHER
