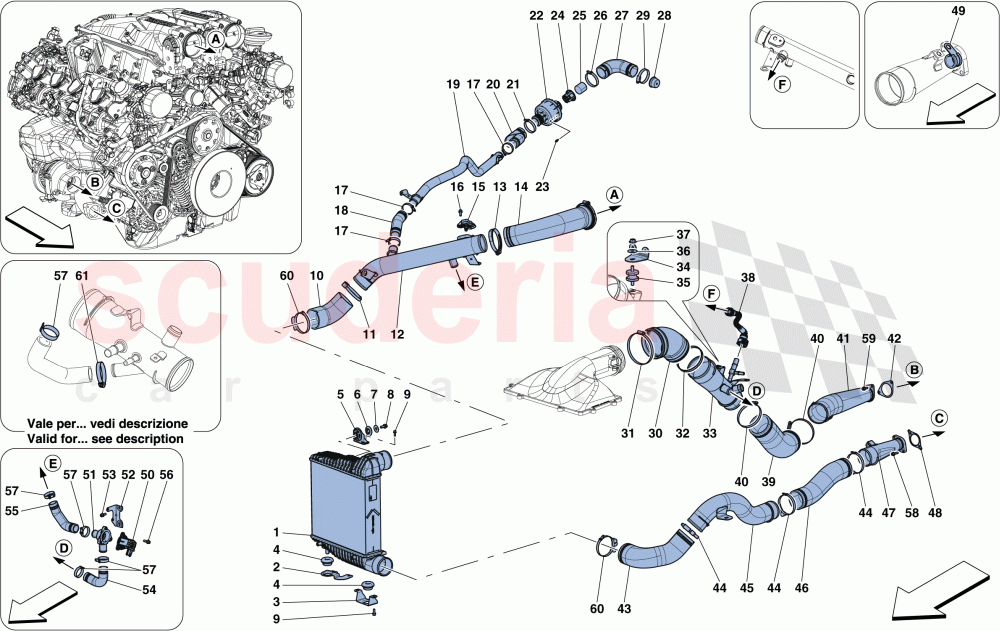

No

Kod

Parça Adı

1

328423

LH INTERCOOLER

1

328422

RH INTERCOOLER

2

325299

RH LOWER FASTENER BRACKET FOR INTERCOOLER

2

321020

LOWER FASTENER BRACKET FOR LH INTERCOOLER

2

325297

RH LOWER FASTENER BRACKET FOR INTERCOOLER

2

321019

LOWER FASTENER BRACKET FOR RH INTERCOOLER

3

14039614

NUT

4

290935

RADIATOR MOUNTING BUSH

5

316040

SCREW

6

13578801

WASHER

7

313559

UPPER INTERCOOLER FASTENER BRACKET

8

16286121

SCREW

9

290938

INTERCOOLER FASTENER RUBBER BUSH

10

10977524

SCREW

11

12643724

WASHER

12

66121400

WASHER

13

315495

KAYSER DUMP VALVE

14

231618

Screw

15

321178

RUBBER PIPE FOR LH DUMP VALVE

15

319273

RUBBER PIPE FOR RH DUMP VALVE

16

310150

CLIP

17

262109

COLLAR

18

224271

CLAMP

19

328416

LH PIPE FROM INTERCOOLER TO THROTTLE BODY

19

322655

LH PIPE FROM INTERCOOLER TO THROTTLE BODY

19

328415

RH PIPE FROM INTERCOOLER TO THROTTLE BODY

19

322654

RH PIPE FROM INTERCOOLER TO THROTTLE BODY

20

328421

HOSE UNION

20

307646

HOSE UNION

22

296785

COLLAR

23

318185

CONNECTOR HOSE ON THROTTLE BODY

24

303232

COLLAR

25

311609

COLLAR

26

285553

VIBRATION DAMPER

27

14040614

Nut

28

272880

PRESSURE AND TEMPERATURE SENSOR

36

231617

Screw

30

310096

SOUND GENERATOR

31

314100

RIVET

32

314129

PIPE FROM RESONATOR TO QUARTERLIGHT

33

314130

PIPE FROM INTAKE DUCT TO QUARTERLIGHT

38

296782

SCREW COLLAR

35

325077

LH COIL COOLING PIPE

35

325076

RH COIL COOLING PIPE

37

330403

LH COIL COOLING PIPE

37

330402

RH COIL COOLING PIPE

37

316687

COILED PIPE

39

217854

Clip

40

316793

CLIP

41

86694400

COMPL. LH UPPER TRELLIS

41

86694500

COMPL. RH UPPER TRELLIS

42

319950

ELECTRIC FAN FOR INTERCOOLER

43

168698

Nut

44

14446624

WASHER

45

87493300

COMPL. LH INTERCOOLER DUCT

45

87494000

COMPL. RH INTERCOOLER DUCT

46

115776

LH PIPE FROM FILTER BOX TO TURBO

46

105904

RH PIPE FROM FILTER BOX TO TURBO

47

105910

LH INTAKE PIPE HEAT SHIELD

47

100474

RH INTAKE PIPE HEAT SHIELD

68

11568124

SCREW

49

319020

LH DUCT MOUNTING BRACKET

49

319019

RH DUCT MOUNTING BRACKET

50

322660

RH INTAKE DUCT SLEEVE

50

324304

LH INTAKE DUCT SLEEVE

51

325567

COMPL. LH TURBO DUCT

51

325566

COMPL. RH TURBO DUCT

52

125521

O-RING

53

231619

SCREW

54

317449

HOSE CONNECTOR WITH FLANGE, LH SIDE

54

317448

HOSE CONNECTOR WITH FLANGE, RH SIDE

55

132829

Gasket

56

325098

LH HOSE CONNECTION FROM TURBO TO INTERCOOLER

56

325097

RH HOSE CONNECTION FROM TURBO TO INTERCOOLER

57

310602

FOAM MOUNT

58

322757

FOAM FOR SOUND GENERATOR

59

88295700

RH FLANK DCT DUCT

59

88296000

LH FLANK DCT DUCT

60

87341000

RH REAR SUBSTRUCTURE DCT MOUNTING BRACKET

60

87340700

LH REAR SUBSTRUCTURE DCT MOUNTING BRACKET

74

11612826

SCREW

62

105864

Washer

63

14304824

SCREW

64

328222

HIGH PRESSURE PIPE ADJUSTER BRACKET

65

81290900

Screw

66

239829

VIBRATION DAMPER

67

326900

LH VAPOUR PIPE MOUNTING BRACKET

67

326901

RH VAPOUR PIPE MOUNTING BRACKET

69

12646624

WASHER

70

88352500

COMPL. RH VENT AND EXTRACTION DUCT

70

87352500

COMPL. RH VENT AND EXTRACTION DUCT

71

88352600

COMPL. LH VENT AND EXTRACTION DUCT

71

87352600

COMPL. LH VENT AND EXTRACTION DUCT

72

16296934

Screw

73

86631300

VENT DUCT FASTENER BRACKET

75

87646400

UPPER/LOWER DUCT GASKET

76

87660500

LATERAL DUCT GASKET

77

87669600

LH DUCT LATERAL GASKET SHIELD

77

87669700

RH DUCT LATERAL GASKET SHIELD

78

12638178

Washer
