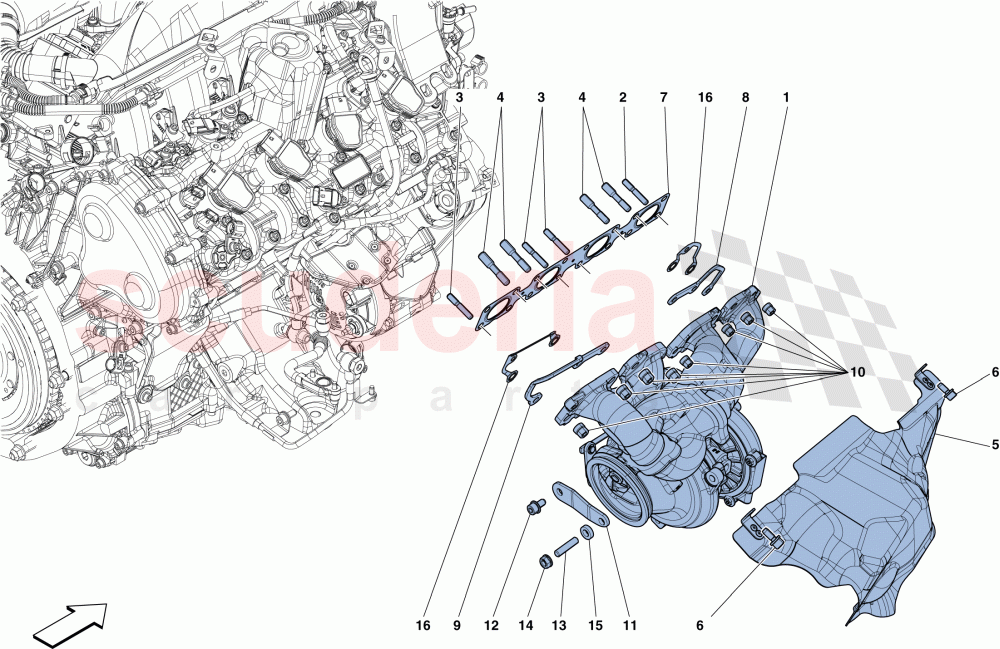

No

Kod

Parça Adı

1

325315

LH EXHAUST MANIFOLD

1

319026

RH EXHAUST MANIFOLD

2

329267

LH TURBOCHARGER

2

329261

RH TURBOCHARGER

3

314780

STEEL RING SEAL

4

313303

TURBO-MANIFOLD FASTENER V-CLAMP

5

292736

EXHAUST MANIFOLD GASKET

6

321573

FASTENER SLIDING BAR, CYLINDERS 1 AND 5

7

321574

FASTENER SLIDING BAR, CYLINDERS 4 AND 8

8

307964

NUT

9

290216

THREADED CONNECTOR WITH SEAL RING

10

10261060

Gasket

11

322189

LH EXHAUST MANIFOLD HEAT SHIELD

11

322188

RH EXHAUST MANIFOLD HEAT SHIELD

12

321692

LH TURBO HEAT SHIELD

12

828860

RH FOOTWELL LINER -Alcantara- -Applicable for GD- -Not for DCT gearbox-

13

233600

Screw

14

280460

Screw

15

309013

TURBO-CAT. CONVERTER FLANGE GASKET

16

338841

CALIBRATED SCREW

17

338842

CALIBRATED BUSH

17

314448

CALIBRATED BUSH

18

304378

NUT

19

325811

TURBO SUPPORT PLATE

20

320402

LH TURBO MOUNTING BRACKET

20

320401

RH TURBO MOUNTING BRACKET

21

231619

SCREW

22

321689

LH CYLINDER HEAD HEAT SHIELD

22

322386

RH CYLINDER HEAD HEAT SHIELD

23

248334

SCREW

24

14076611

NUT
