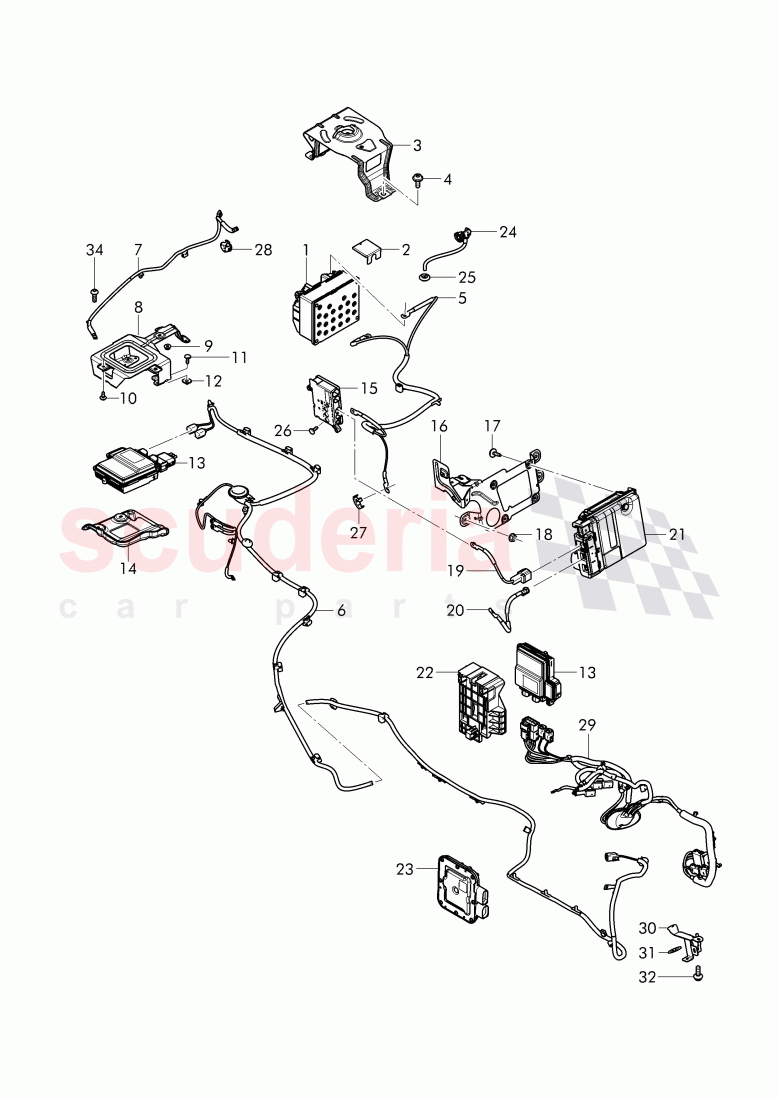

No

Kod

Parça Adı

3

4M0 802 747 A

bracket

4

N 911 280 01

bolt, with polygon socket hd.

5

4M0 971 227 BE

harness for battery +/-, D >> - 11.04.2016

5

4M0 971 227 BH

harness for battery +/-

5

4M0 971 227 BG

harness for battery +/-

5

4M0971227CB

harness for battery +/-

6

4M0 971 227 BN

harness for battery +

6

4M0971227CC

harness for battery +

6

4M0971227CE

harness for battery +

6

4M0 971 227 BM

harness for battery +

6

4M0971227CD

harness for battery +

6

4M0971227CF

harness for battery +

7

4M0 971 534 T

ground strap

8

4M0 501 143 M

bracket for elec.contr. module

18

N90215805

shouldered hex. nut, Discont./New add.+FULU calc.

10

N 106 695 02

socket head bolt with inner, hex round head

12

N 907 088 03

speed nut

13

971907156N

Control unit for, active roll stabilisation, D - 19.12.2016>>

14

4M0 507 133 E

heatshield

15

4M0 941 828

fuse holder, D >> - 01.02.2016

15

4M0 941 828 J

fuse box with fuse

15

4M0 941 828 A

fuse box with fuse

16

4M0 907 349

bracket, transformer

16

4M0 907 349 C

bracket, transformer

17

N90900401

Hex socket oval head collared, D >> - MJ 2014

19

4M0 971 534 P

harness for battery +, D >> - 11.04.2016

19

4M0 971 534 K

harness for battery +

20

4M0 971 534 Q

ground strap

20

4M0 971 534 D

ground strap, Voltage transformer

20

4M0 971 534 G

ground strap

20

4M0 971 227 S

ground strap, Voltage transformer

21

4M0 959 663 G

Voltage transformer, D - 18.09.2017>>

21

4M0 959 663 F

Voltage transformer, D - 18.09.2017>>

22

4M0 907 371 G

bracket for elec.contr. module

24

4M0 915 500 A

battery discahrge

25

4M0 915 143

grommet

26

N 107 002 01

round hd. screw, F >> 4V-J-019 934, F >> ZV-J-019 934

27

4H0 971 260

retainer

28

4M0 907 371 H

retainer

29

4M0971227CG

harness for battery +, for compressor

29

4M1971227B

harness for battery +

29

4M2971227B

harness for battery +

30

4M0 407 731 B

bracket

31

N 903 350 06

clamping washer, D - 07.03.2016>>

32

N 905 330 05

bolt, hex. hd. (combi.)

34

N 104 301 04

Hexagon socket flat, head bolt
