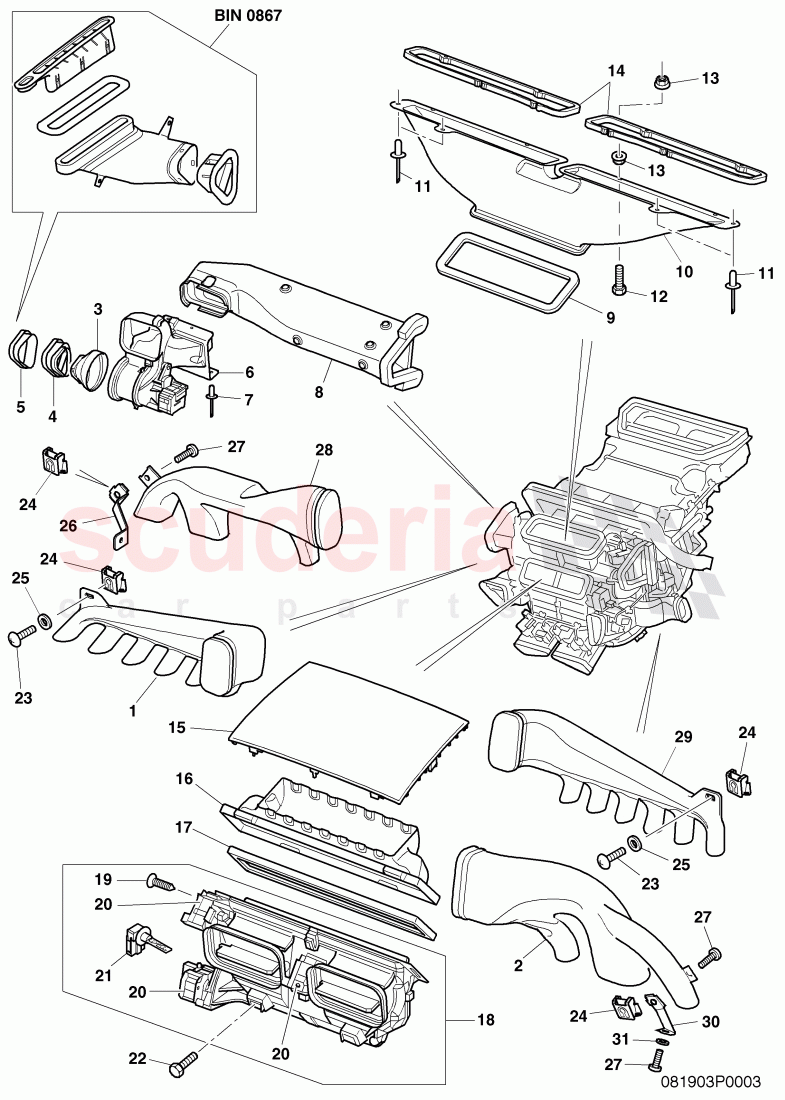

No

Kod

Parça Adı

1

3D2819167

footwell vent

2

3D2819152

footwell vent

3

3W0857481A

air guide channel side window

3

3W0857482A

air guide channel side window

4

3W0819701

grille for, dashboard

5

3W0819737B

gasket

6

3D1857039C

air guide (drivers side)

6

3D1857040B

air guide (passenger side)

6

3D2857039A

air guide (passenger side)

6

3D2857040A

air guide (drivers side)

7

N90825801

pop-rivet, D - 08.04.2013>>

8

3D1819633B

air guide

8

3D1819634A

air guide

8

3D2819633A

air guide

8

3D2819634A

air guide

9

3W0819070B

gasket for air duct

10

3W0819063C

air guide channel

11

N0162061

cup rivet see drawing:

12

N10569501

round-head screw with inner hexagon socket head

13

N10017304

shouldered hex. nut, D >> - 03.01.2011

14

3W0819064B

gasket for air duct

14

3W0819065C

gasket for air duct

15

3W8858093

Grille, dashboard

15

3W0819381L

grille vics locating device D - 26.11.2007>>

16

3W0819241C

air guide channel

17

3W0819028

gasket for air duct

18

3D1819509C

air distribution housing, D - 11.12.2006>>

18

3D2819509C

air distribution housing, D - 11.12.2006>>

19

N90659601

tapping screw

20

3D0959311

motor for adjustment

21

4B0820539

temperature sensor

27

N90729003

fillister head bolt (combi.)

23

N10174804

fillister hd. screw, D >> - 29.03.2011

24

N90356204

speed nut, included in position:

31

N01152426

washer

26

3W1819549

bracket, footwell vent

28

3D1819167D

footwell vent

29

3D1819168A

footwell vent

30

3D2819550

bracket, footwell vent
