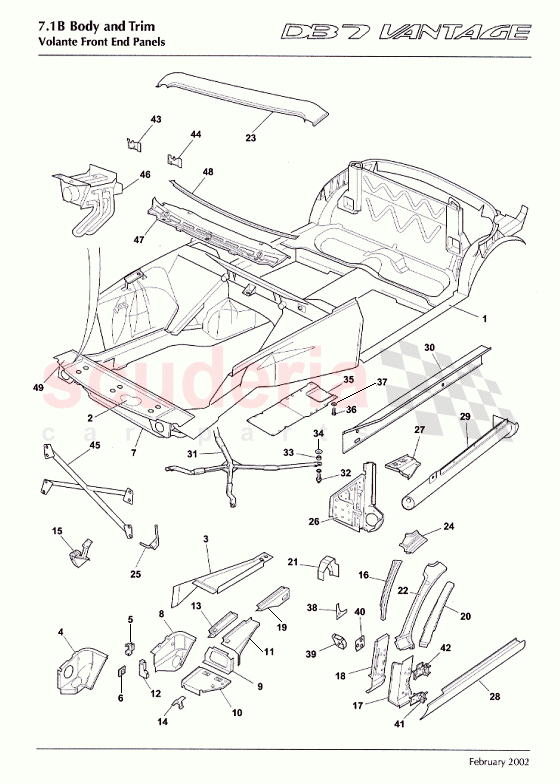

Aston Martin Yedek Parça - DB7 (1997) Parts - Volante Front End Panels

Parça Kodları

No

Kod

Parça Adı

0

63-84741

BODY COMPLETE WITH DOORS-CONV 96.5MY

0

60110620BA

Bodyshell, less doors, wings, bonnet, & trunk lid

39

697186

SCREW M8 x 20 HEX HEAD GRADE 8.8

40

694597

WASHER M8 x 25 x 3

0

697524-PK

Screw-No8x25 FLG(20)

0

698985

BOLT FLG

0

697497-PK

Screw-No8x19 FLG(20)

0

697528-PK

Washer-M5 Large OD Pack of 20

0

698346

Adhesive, Bondit BIA7050

4

19-82956

ASSEMBLY HEADLAMP INR LH

15

19-82958

ASSEMBLY HEADLAMP OTR LH

0

2080716

Closing gussett, inner A post - LH

0

65-80737

ASSY-DOOR HINGE LOWER LH

0

65-80739

ASSY-DOOR HINGE UPPER-LH

4

19-82955

ASSEMBLY HEADLAMP INR RH

15

19-82957

ASSEMBLY HEADLAMP OTR RH

0

2080591

Panel closing, dash side - LH

0

19-84394

ASSY-BUMPER FRONT MTG BRKT LH DB7 I6

0

65-84355

DOOR HINGE CIRCLIP

0

65-80800

SHIM-HINGE UPPER LH

2

61-83721

N/A PANEL VALANCE FT RH

2

61-83722

N/A PANEL VALANCE FT LH

5

61-83723

GUSSET REINF VAL TO X-MBR BUMPER MTG RH

5

61-83724

GUSSET REINF VAL TO X-MBR BUMPER MTG LH

10

61-83725

BRACE BMPR MTG RR TO X-MBR FRNT RH

16

2080663

Panel, A post support extension - RH

16

2080664

Panel, A post support extension - LH

17

6180721

Panel A post inner - RH

17

61-80722

Panel A post inner - LH

18

20-83704

PANEL A POST LOWER RH

18

20-83705

PANEL A POST LOWER LH

19

20-83689

PNL REINF A POST LWR RH

19

20-83690

PNL REINF A POST LWR LH

20

61-80727

VALANCE REINF UPPER RH

20

61-80728

VALANCE REINF UPPER LH

21

61-80674

PANEL A POST OUTER RH

21

61-80675

PANEL A POST OUTER LH

22

20-80588

PANEL SUPPORT A POST -RH

22

20-80589

PANEL SUPPORT A POST -LH

23

61-83695

PANEL A POST REINF RH

23

61-83696

PANEL A POST REINF LH

24

6183697

Extension, "A" post reinforcement - RH

24

6183698

Extension, "A" post reinforcement - LH

26

6183699

Panel, front header inner - RH

26

6183700

Panel, front header inner - LH

27

2080590

Panel closing, dash side - RH

29

20-83606P

ASY-REINF.W/ARCH RH

29

20-83607P

ASY-REINF.W/ARCH-LH

30

61-83687

ASSY EXTN SILL FRONT RH

30

61-83688

ASSY EXTN SILL FRONT LH

31

61-83702

PNL SILL OTR RH

31

61-83703

PNL SILL OTR LH

32

21-83608

ASSY-SILL TUBE INNER RH

32

21-83609

ASSY-SILL TUBE INNER LH

33

2183610

Sill, inner - RH

33

2183611

Sill, inner - LH

41

2080715

Closing gussett, inner A post - RH

43

65-80799

SHIM-HINGE UPPER RH

44

65-80736

ASSY DOOR HINGE LOWER RH

45

65-80738

ASSY DOOR HINGE UPPER-RH

50

19-84393

ASSY-BUMPER FRONT MTG BRKT RH WITH TOWING HOOK DB7 I6

54

20-84980

BRACKET-UNDERTRAY EXTENSION
