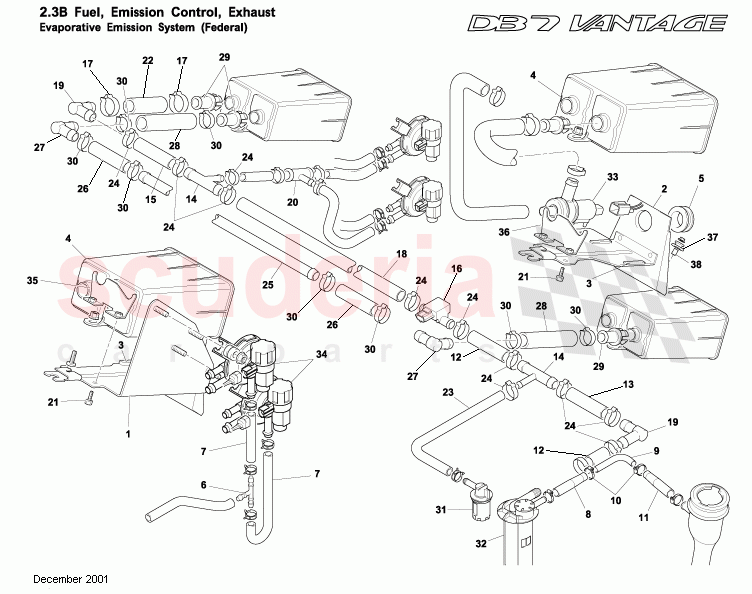

No

Kod

Parça Adı

12

34-122239-AA

HOSE ASSY - EVAP FLANGE TO CARBON CAN (FED)

1

34-120888-AB

BRACKET ASSEMBLY- CANISTER MOUNTING RH

2

34-121367-AB

BRACKET-ASSEMBLY CANISTER MOUNTING LH

3

34-85176

FOAM STRIP-40mm

4

34-84916

CARBON CANNISTER

5

34-84258

GROMMET - RUBBER

6

34122237AA

T connector

7

34-121557-AA

PIPE ASSY VACUUM

8

34-85789

HOSE

9

34122284AA

Pipe

10

697315

CLIP - HOSE

11

34122285AA

Hose, 100 long

13

34122248AA

Hose, 40 long

14

34122240AA

T connector

15

34123178AA

Hose, 90 long

16

34-85178

SENSOR-FTPT-REMOTE

30

34122242AA

Clip

18

34122250AA

Hose, 475 long

27

34122243AA

Elbow connector

20

34122990AA

Schraeder valve assy

21

697304

SCREW M5 x 10 HEX FLANGE HEAD GRADE 8.8

22

34122252AA

Hose, 70 long

23

3485338

Hose

24

34122286AA

Clip

25

34122244AA

Pipe, canister to canister

26

34-122994-AA

HOSE

36

34122995AA

Hose, 60 long

29

34-85325

CONNECTOR-C/CANISTER

31

34-85150

ROLL OVER VALVE

32

34-86249

VALVE-LIQUID VAPOUR

33

34-84269

PURGE VALVE (CANVNT)

34

34-84268

PURGE VALVE (VMV)

35

34-123472-AA

ASSEMBLY-BRACKET-RH CANISTER RETAINER

36

34122251AA

Hose, 140 long

36

34-123470-AA

ASSEMBLY-BRACKET-LH CANISTER RETAINER

36

34-122971-AB

PIPE - SOLENOID TO FIRST CAN

36

34122996AA

Hose

36

34-85533

FOAM PAD

37

32-81332

GROMMET- 12.7 Dia 2.8 P.T

38

34-84539

ARMOUR HOSE

38

700119

SPACER

38

37-90075

Cable Tie, 290mm
