No

Kod

Parça Adı

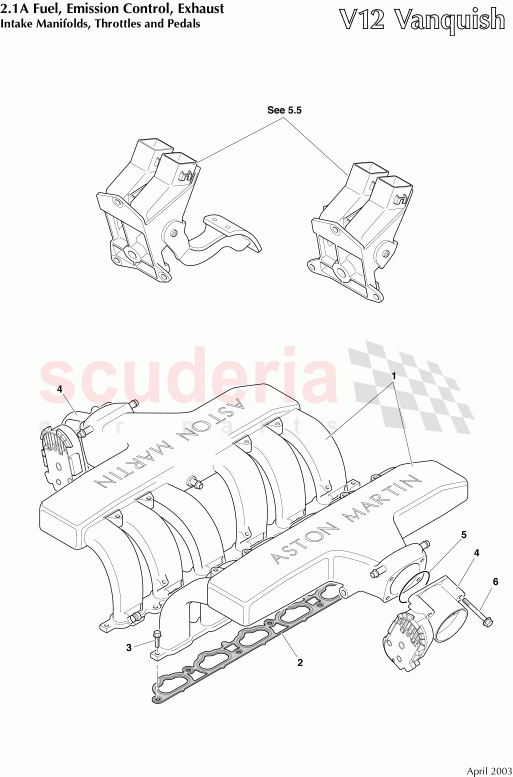

1

08-85788

INTAKE MANIFOLD ASSY

2

08-85153

Gasket - INL Man/CYLHD

3

697767

SCREW M6 x 35 W/WSHR

3

08-85154

GOOSENECK-EGR RH

4

08-85155

GOOSENECK-EGR LH

5

08-85156

BRACKET-T/CABLE

6

08-85157

GASKET-AIR BYPASS

7

08-85307

SoleNoid-Idle Air Control

8

697768

Bolt, flg, M6 x 33.25

9

08-85160

TUBE

16

697769

SCREW M6 x 23 W/WASR

11

08-85161

Gasket - Throttle Body

15

697770

BOLT M6

13

08-85162

THROTTLE BODY ASSY

13

08-85163

THROTTLE BODY ASSY

14

08-85164

Gasket-T/Body-G/Neck

23

08-121164-AE

THROTTLE MECH ASSY

17

97-125206-AA

GT INLET MANIFOLD BADGE

17

97-121834-AA

NAME PLATE - INTAKE MANIFOLD

18

08-121152-AC

ASSY MOUNTING BRKT THROTTLE MECHANISM

18

08-122147-AC

ASSY THROTTLE CAM PULLEY

21

08-122048-AA

PLAIN BEARING - BRON ZE BUSH

24

692785

SCREW M4 x 16 POSI PAN HEAD ZINC PLATED

25

692044

WASHER M4 SPRG TYPE A WRGHT STEEL ZINC PLT

26

08-122049-AB

SHAFT - THROTTLE MECHANISM

27

699271

NUT M8 HEX METLOC GRD 8 ZINC PLT

28

08-121155-AB

SPACER-THROTTLE MECH

29

699272

SUPPORT WASHER DIA 8 SPRING MATERS S90050

30

08-122050-AA

Spring - Torsion

31

698916

CIRCLIP

32

693824

SCREW M4 x 20 CHROME PAN HEAD POZI DRIVE

33

692074

NUT M4 HEX GRD 8 ZINC PLT

34

698923

GROMMET

35

08-122182-AB

ASSY CABLE - PEDAL ACCELERATOR RHD

35

08-122183-AB

ASSY CABLE - PEDAL ACCELERATOR LHD

36

08-121163-AB

ASSY CABLE-THROTTLE BODY

37

34-122422-AB

CLIP - PCV HOSE

38

08-85383

SENSOR-THROTTLE POSN

38

08-84204

SINGLE TRACK THROTTL POTENTIOMETER FORD:

39

29-81279

RETAINER-ACCELERATOR CABLE RHD

39

698948

CLIP - ACCELERATOR CABLE

39

08-120917-AA

CLIP-CABLE RETENTION

39

699101

SCREW

39

697622

WASHER .20 PLAIN .20 X .75 OD X .04 T

39

702295

Nut, M5, Hex Flange Head
