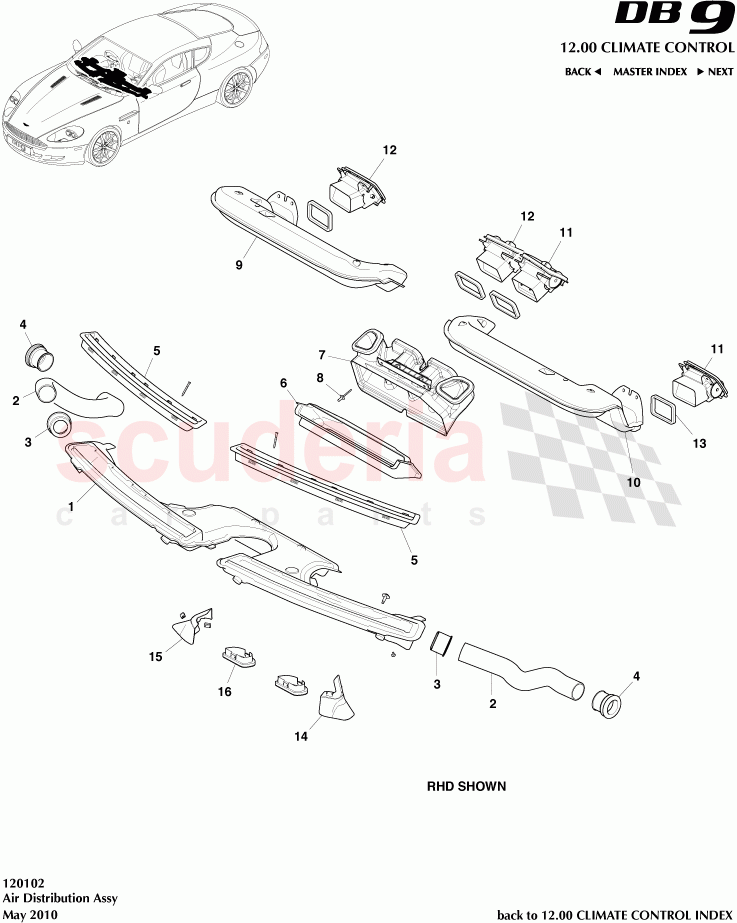

No

Kod

Parça Adı

1

703156

Screw/Washer M6x18 Chrome Free

1

701157-PK

Screw & Washer 4.2x16 Drilled HD Tap Pack of 10

1

6G33-04432-BD

Duct Assembly, Windshield Deflector, RHD

1

6G33-04432-AD

Duct Assembly, Windshield Deflector, LHD

2

4G43-19E658-AC

Hose, A/C Window Demister

3

4G43-19E680-AD

Connector, A/C Demister Hose

4

4G43-C046B80-AC

SE I/PNL DEF OPG GRL

5

6G33-79231-AC

Screw, M3.5 x 38, Flat Hd Csk

5

4G43-18C491-AJ

Grille - Window Defrost

6

4G43-18633-BC

DUCT ASSY HEATER OUTLET RH

7

8G43-18D404-BC

Duct Assembly, Heater Air Distribution, RHD

7

8G43-18D404-AC

Duct Assembly, Heater Air Distribution, LHD

7

4G43-18D404-BD

DUCT ASSY - HEATER AIR DISTRIBUTOR CENTRE RHD

7

4G43-18D404-AD

DUCT ASSY - HEATER AIR DISTRIBUTOR CENTRE LHD

8

702943

Rivet, 3.2 x 12.5, Blind Al Dome Head

9

8G43-19C804-AE

Duct Assembly, A/C Instrument Panel Centre to RH

9

6G33-19C735-AB

DUCT - AIRCON INSTRUMENT PANEL REGISTER RH

10

8G43-19C805-AE

Duct Assembly, A/C Instrument Panel Centre to LH

10

6G33-19C850-AB

DUCT - AIRCON INSTRUMENT PANEL REGISTER LH

11

8D33-046B31-BB

Register Assembly, LH, Iridium Silver

11

4G43-046B31-BB

Register Assembly, Air Con, LH

12

703068

4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP

12

701447

Screw, M4 x 12, Pan Head, Torx Screw

12

8D33-046B30-BB

Register Assembly, RH, Iridium Silver

12

4G43-046B30-BB

Register Assembly, Air Con, RH

13

4G43-18D404-CA

FOAM SEAL - AIR DISTRIBUTION DUCTS

14

9D33-014K96-AA

Duct Assembly, Aircon Footwell, RH, RHD

14

8G43-014K96-AB

Duct Assembly, Aircon Footwell, RH, LHD

15

8G43-014K97-BB

Duct Assembly, Aircon Footwell, LH, RHD

15

9D33-014K97-AA

Duct Assembly, Aircon Footwell, LH, LHD

16

9G43-370807-AA

Bracket Assembly, Tyre Pressure Monitoring

16

7G43-014K00-AA

Plug Assembly, Foot Duct Outlet
