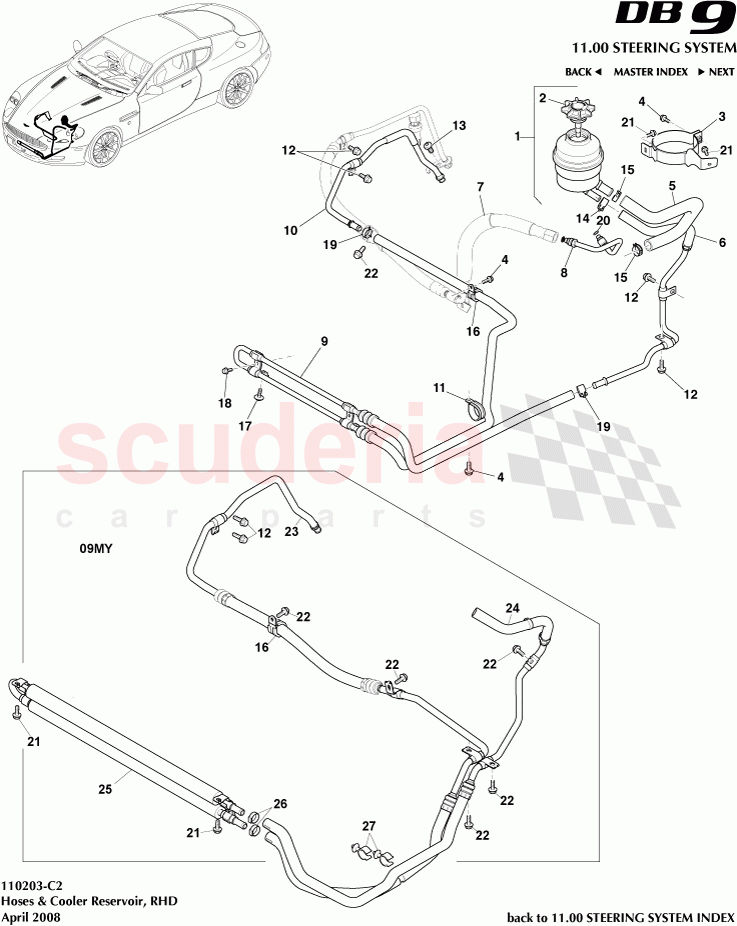

No

Kod

Parça Adı

1

4G43-3R700-AB

Reservoir and Cap Assy

2

4G4334006AA

Cap assy, power steering reservoir

3

4G43-3489-AC

BRACKET ASSY - PAS RESERVOIR

21

703265

Screw, M6 x 16, Hex Flange Head

5

4G43-3E525-AA

RESERVOIR TO PUMP SUCTION

6

4G43-3A713-BB

ASSY TUBE PAS RETURN - RHD

7

4G43-3A719-BE

Hose Assy, PAS Pressure Line, Pump to Gear, RHD

8

4G43-3494-AA

PUMP OUTLET TUBE - HIGH PRESSURE

9

4G43-3D746-BC

COOLING LOOP (RHD) POWER STEERING

10

4G43-3F558-BA

RETURN PIPE GEAR TO COOLER (RHD)

27

4G43-6C727-AA

HOSE CLIP (RAYMOND 81442)

12

703121

Screw, M8 x 25, Hex Flange Head

13

703141

SCREW M8 x 16 CHROME FREE

14

701349

Clamp, Hose 20 Dia

15

699545

HOSE CLAMP OETIKER REF: 025.6 - 706R

16

699711

‘P Clip, 23 x 15 x M6

17

6G33-FA0115-AB-PK

Screw and Washer, M6 x 20, Torx Head

18

703203

Screw M6 x 20 Heex Flange 8 Chrome Free

26

8D33-60155-AA

CLAMP - PAS HOSE

22

3703203

Screw, flg, M6 x 25

23

8D33-3F558-BC

RETURN HOSE GEAR TO COOLER RHD

24

8D33-3A713-AB

RETURN HOSE COOLER TO RESERVOIR

25

8D33-3D746-AB

COOLING LOOP POWER STEERING

27

3786250

Edge Protection, Switch Harness, 150mm
