No

Kod

Parça Adı

-

12023-14-6703-AA

Shell, Seat Back LH

-

12023-14-6715-AA

Circlip

-

12023-14-6717-AA

Loctite

-

12023-14-6406-ACW

Cover assy, Front Seat Squab LHS

-

610207095

Tape, Double Sided

-

610260051

Velcro Loop

-

610260050

Velcro Hook

-

610260105

Velcro Loop (White)

-

61026024

Velcro Loop 50x10mm

-

4G43-6021-AB

Clip, Seat Edge Fixing

-

12023-14-6410-AB

Seat belt loop, Left hand front

-

12023-14-6410-BB

Seat belt loop, Left hand front

-

12023-14-6410-CB

Seat belt loop, Left hand front

-

12023-14-6410-DB

Seat belt loop, Left hand front

-

12023-14-6410-EB

Seat belt loop, Left hand front

-

12023-14-6410-FB

Seat belt loop, Left hand front

-

12023-14-6410-GB

Seat belt loop, Left hand front

-

12023-14-6410-HB

Seat belt loop, Left hand front

-

12023-14-6410-JB

Seat belt loop, Left hand front

-

12023-14-6410-KB

Seat belt loop, Left hand front

-

12023-14-6410-LB

Seat belt loop, Left hand front

-

12023-14-6410-MB

Seat belt loop, Left hand front

-

12023-14-6410-NB

Seat belt loop, Left hand front

-

12023-14-6410-PB

Seat belt loop, Left hand front

-

12023-14-6410-RB

Seat belt loop, Left hand front

-

12023-14-6410-SB

Seat belt loop, Left hand front

-

12023-14-6411-AB

Seat belt loop, Right hand front

-

12023-14-6411-BB

Seat belt loop, Right hand front

-

12023-14-6411-CB

Seat belt loop, Right hand front

-

12023-14-6411-DB

Seat belt loop, Right hand front

-

12023-14-6411-EB

Seat belt loop, Right hand front

-

12023-14-6411-FB

Seat belt loop, Right hand front

-

12023-14-6411-GB

Seat belt loop, Right hand front

-

12023-14-6411-HB

Seat belt loop, Right hand front

-

12023-14-6411-JB

Seat belt loop, Right hand front

-

12023-14-6411-KB

Seat belt loop, Right hand front

-

12023-14-6411-LB

Seat belt loop, Right hand front

-

12023-14-6411-MB

Seat belt loop, Right hand front

-

12023-14-6411-NB

Seat belt loop, Right hand front

-

12023-14-6411-PB

Seat belt loop, Right hand front

-

12023-14-6411-RB

Seat belt loop, Right hand front

-

12023-14-6411-SB

Seat belt loop, Right hand front

-

12023-14-6412-AC

Seat belt loop, Left hand rear

-

12023-14-6412-BC

Seat belt loop, Left hand rear

-

12023-14-6412-CC

Seat belt loop, Left hand rear

-

12023-14-6412-DC

Seat belt loop, Left hand rear

-

12023-14-6412-EC

Seat belt loop, Left hand rear

-

12023-14-6412-FC

Seat belt loop, Left hand rear

-

12023-14-6412-GC

Seat belt loop, Left hand rear

-

12023-14-6412-HC

Seat belt loop, Left hand rear

-

12023-14-6412-JC

Seat belt loop, Left hand rear

-

12023-14-6412-KC

Seat belt loop, Left hand rear

-

12023-14-6412-LC

Seat belt loop, Left hand rear

-

12023-14-6412-MC

Seat belt loop, Left hand rear

-

12023-14-6412-NC

Seat belt loop, Left hand rear

-

12023-14-6412-PC

Seat belt loop, Left hand rear

-

12023-14-6412-RC

Seat belt loop, Left hand rear

-

12023-14-6412-SC

Seat belt loop, Left hand rear

-

12023-14-6413-AC

Seat belt loop, Right hand rear

-

12023-14-6413-BC

Seat belt loop, Right hand rear

-

12023-14-6413-CC

Seat belt loop, Right hand rear

-

12023-14-6413-DC

Seat belt loop, Right hand rear

-

12023-14-6413-EC

Seat belt loop, Right hand rear

-

12023-14-6413-FC

Seat belt loop, Right hand rear

-

12023-14-6413-GC

Seat belt loop, Right hand rear

-

12023-14-6413-HC

Seat belt loop, Right hand rear

-

12023-14-6413-JC

Seat belt loop, Right hand rear

-

12023-14-6413-KC

Seat belt loop, Right hand rear

-

12023-14-6413-LC

Seat belt loop, Right hand rear

-

12023-14-6413-MC

Seat belt loop, Right hand rear

-

12023-14-6413-NC

Seat belt loop, Right hand rear

-

12023-14-6413-PC

Seat belt loop, Right hand rear

-

12023-14-6413-RC

Seat belt loop, Right hand rear

-

12023-14-6413-SC

Seat belt loop, Right hand rear

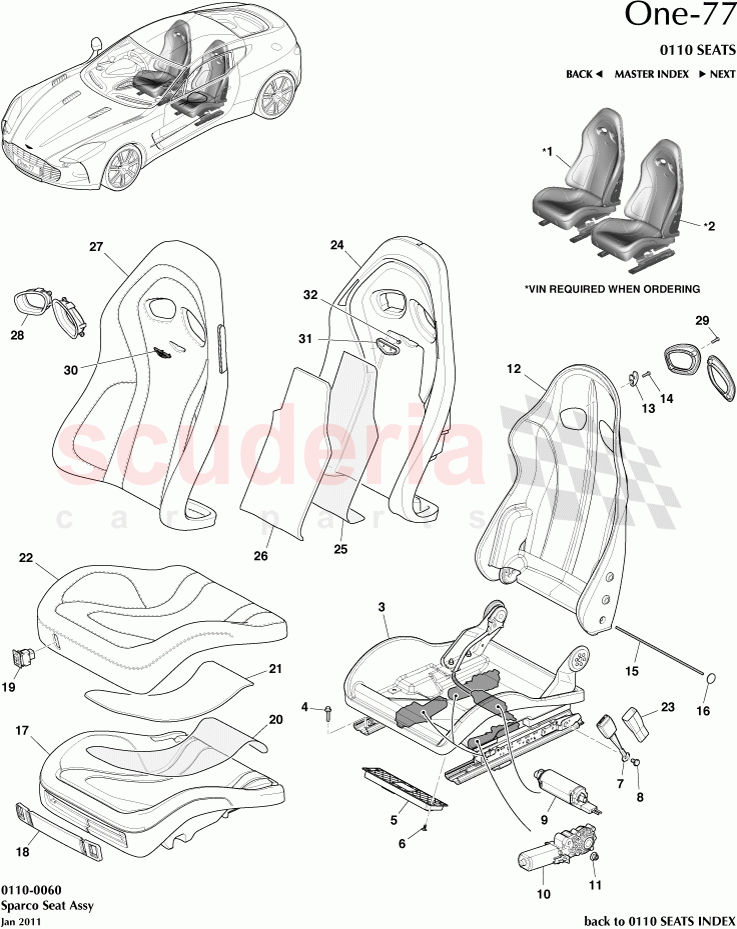

1

12023-14-6741-AG

Front seat, trimmed assy

2

12023-14-6742-AH

Front seat, trimmed assy

3

12023-14-6709-AB

Seat Base assy

4

702526

Bolt, M8 x 30, Hex Flg Hd

5

CD33-14C249-AE

SEAT ECU

6

701581-PK

FIRTREE-FLAT HEAD PACK OF 20

7

4G43-613K22-BD

Buckle Assembly, Front Seatbelt

28

NSS

 Seat Belt Loops Frt/ Rear and Left/Right

9

12023-14-6414-AC

Motor assy, Seat Incline

10

4G43-74-10127

Kit, Squab Motor

12

12023-14-6744-AA

Shell, Seat Back RH

13

9G43-18564-AA

Hook, Coat

14

6G33-SS106209-AB

Bolt, M6 x 20, Skt Hd

15

12023-14-6713-AA

Rod, Connector

16

12023-14-5045

Cover, Connector Rod

17

12023-14-6630-AA

Foam, Seat Base

18

12023-14-6587-AA

Housing, Seat Strap

19

AY93-14D764-AA

Switch, Heated Seat

20

7G43-14D698-AC

Element, Seat Base Heater

21

12023-14-6712-AA

Foam Insert, Seat Base

22

12023-14-6408-ACW

Cover assy, Front Seat Cushion

23

12023-14-6564-AAW

Cover, Seat Belt Buckle

24

12023-14-6632-AG

Foam, Seat Back

25

12023-14-6704-AA

Element, Seat Back Heater

26

12023-14-6705-AA

Foam Insert, Seat Back

27

12023-14-5038-ACW

Cover assy, Front Seat Squab RHS

29

704509

Screw M4x8 Pan hd

30

12023-14-6570-AA

Badge, Seat

31

12023-14-6571-AC

Back plate, Seat Badge

32

700986-PK

Nut-M4 HEX FLG Pack of 20
