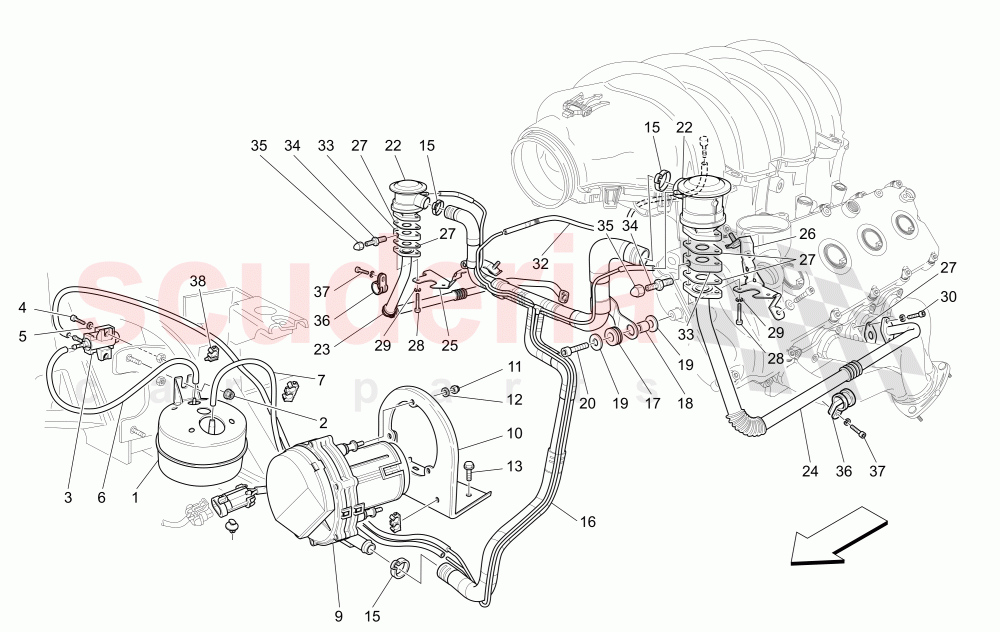

No

Kod

Parça Adı

1

330328400

VACUUM TANK

2

14059211

NUT

3

315769

On/Off Solenoid Valve

4

14304624

SCREW

5

12601174

WASHER

6

238513

SLEEVE

7

246373

SLEEVE

9

181197

SECONDARY AIR PUMP

10

215965

AIR PUMP FIXING BRACKET

11

14039614

NUT

12

11197774

Washer

13

16285924

SCREW

15

226356

CLAMP

16

241777

AIR DELIVERY PIPE TO VALVES ASS.

17

219456

VIBRATION-DAMPING MOUNT

18

219457

SPACER

19

12643724

Washer

20

231618

SCREW

22

171175

Secondary Air Valve

23

226274

R.H. AIR VALVE PIPE

24

226275

L.H. AIR VALVE PIPE

25

227001

R.H. AIR VALVE FIXING BRACKET

25

265569

R.H. AIR VALVE FIXING BRACKET

26

227000

L.H. AIR VALVE FIXING BRACKET

26

265568

L.H. AIR VALVE FIXING BRACKET

27

186781

Gasket

28

231621

SCREW

29

127494

WASHER

30

248334

SCREW

32

230835

RUBBER HOSE

33

264020

SPACER

34

257977

THREADED UNION

35

150595

NUT

36

10441590

BRACKET WITH SHEATH

37

233600

SCREW

38

209928

CLIP
