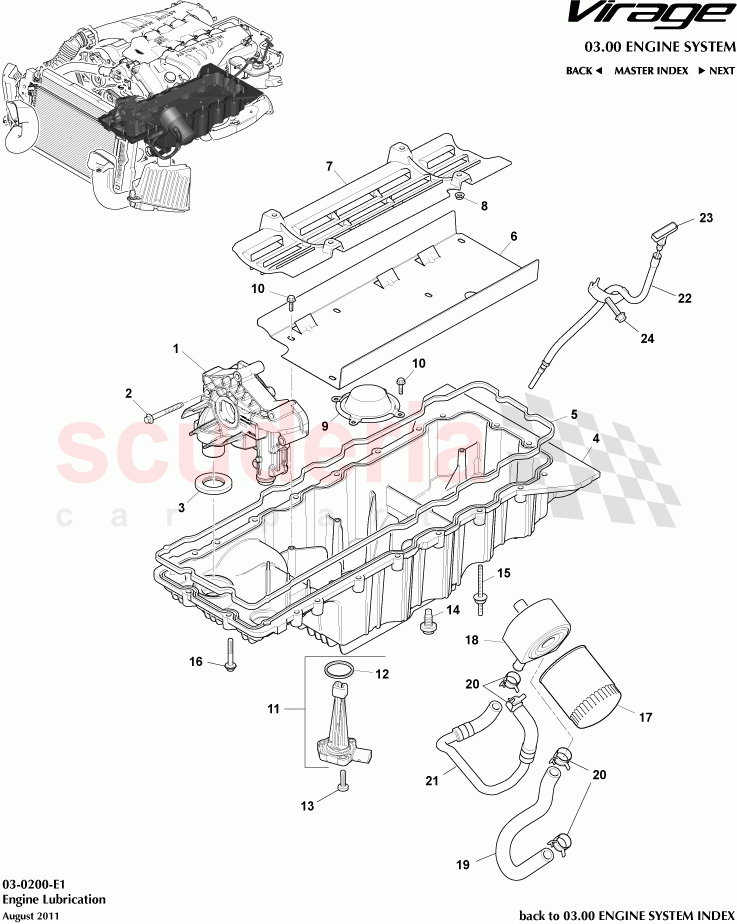

No

Kod

Parça Adı

1

8D33-6675-DA

OIL PAN ASSEMBLY

1

4G43-04-10205

Plug, Oil Pan Drain

1

8D336676DA

Oil Pan

2

04-85092

Engine Sump Gasket

3

702605

BOLT M8 x 45 HEX FLANGE 8

5

702604

STUD & WASHER M6 x 20 + M8 x 47.5 HF

6

4G4E-6622-BA

SCREEN & COVER ASSY - SUMP OIL PICK UP

7

69111

Bolt M6x18.5 hex flg hd

8

8D33-6686-AD

Baffle Plate, Oil Pan

9

702601

BOLT-M6-1.0 X 16 HEX FLG PT

10

4G4E-6B660-BA

WINDAGE TRAY

11

703169

NUT - M6 HEX FLANGE CHROME FREE

12

4G43-04-10972

Sensor Assy, Engine Low Oil Level

13

700607

Screw, M6 x 16mm, Hex Flange Head

14

8G43-04-11112

Service Assy - Oil Pump

15

702552

BOLT M8 X 70 HF PIL 8

16

4G43-04-10196

Seal, Oil Pump Pickup Tube to Pan

17

4G43-44-10007

INSERT-OIL CLR BOLT

17

8G43-6A642-BB

COOLER ASSY-ENG OIL

18

AG43-6714-AA

Oil Filter - Single

19

4G4E-6N867-BB

TUB & HOS ASY-ENG OIL COOL

20

4G4E-8B451-BA

HOSE ASSY - ENGINE OIL COOLER

21

702858

HOSE CLAMP 23.9-27.1

22

4G4E-6754-AD

TUBE ASSEMBLY - OIL LEVEL ASSEMBLY

23

701745

Bolt, M8 x 30, Hex Flg Hd

24

8D33-6750-CA

OIL LEVEL INDICATOR ASSEMBLY
