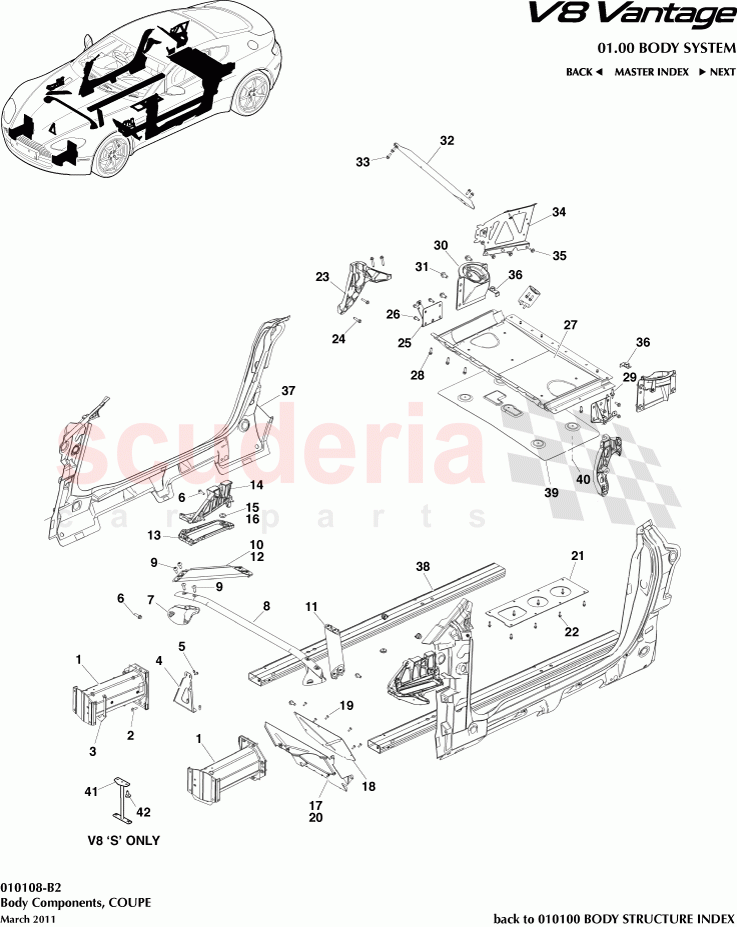

No

Kod

Parça Adı

1

6G33-V17N800-BA

BUMPER FR CRUSH CAN

28

703120

Screw M8-1.25-90 Hex Skt Hd Shoulder

3

6G33-6367912-AB

Nutplate Assy, Crush Can, Lower, RH

3

6G33-6367913-AB

Nutplate Assy, Crush Can, Lower, LH

4

6G33-108A74-AC

BRACE FRONT CROSS

19

701553

Screw, M6 x 16, Pan Head

6

702210-PK

Screw, M10 x 30, Hex Flange Head

7

4G43-108A86-CA

Bracket, Front Cross Brace, RH

7

4G43-108A87-CA

Bracket, Front Cross Brace, LH

8

6G33-108A75-AB

BRACE FRONT CROSS

9

702209

Bolt, M10 x 25, Torque Drive

10

GOAG43-F00198-AA

Reinforcement, Body Front Cross Bar, RH

11

GOAG43-F00199-AA

Reinforcement, Body Front Cross Bar, LH

12

703160-PK

Nut-M10 HEX Flange Chrome Free Pack of 10

13

6G33-5340-BA

Bracket, ECU Mounting, RH

13

6G33-5341-BA

Bracket, ECU Mounting, LH

14

6G33-16798-BA

BRACKET HOOD HINGE SUPPORT RIGHT HAND

14

6G33-16799-BA

BRACKET HOOD HINGE SUPPORT LEFT HAND

15

4G43-061B70-AA

CAP DUST COVER

16

4G43-16740-AB

PAD - HOOD ON COWL

16

4G43-16740-AA

PAD - HOOD ON COWL

17

4G43-111C61-AE

Panel, Dummy Floor Front, RHD

17

9G43-111C60-GF

Panel, Dummy Floor Front, LHD

18

4G43-111B48-AB

Panel, Dummy Floor Cover, Front

20

700116

NUT M6 HEX FLG NYLOC

21

AD23-111K37-CA

REINF CTR TNL

22

703203

Screw M6 x 20 Heex Flange 8 Chrome Free

23

6G33-611D38-BA

Bracket Assembly, Front Seat Belt Retainer, RH

23

6G33-611D39-BA

Bracket Assembly, Front Seat Belt Retainer, LH

24

703142

Bolt, M8 x 38, Hex Flange Head

25

6G33-5D022-AD

BRACKET REAR SUB FRAME STABILISER

27

6G33-9N172-AE

ASSEMBLY PANEL FUEL TANK COMPARTMENT PT LWR COMP

27

ED23-9N172-BA

ASSY PNL FU/TNK COM

29

702509

STUD M8x23 + M6x14 HEX FLANGE PILOT

30

6G33-18A000-AD

Member, Rear Shock Absorber Mounting, RH

30

6G33-18A001-AD

Member, Rear Shock Absorber Mounting, LH

31

703185

M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE

32

GOAG33-28442-AB

BRCE BDY RR CNR PNL

32

GOAG33-28443-AB

BRCE BDY RR CNR PNL

33

703121

Screw, M8 x 25, Hex Flange Head

34

AG3310N873AE

Panel, amplifier mount

34

6G33-10N873-AE

AMPLIFIER MOUNTING PANEL

35

703152-PK

Screw/Washer M6x20 HEX Pilot Chrome Free Pack of 10

36

4G43-501B0-AC

NUT PLATE REAR SUB FRAME REAR M14

37

6G33-20412-AL

REINF DOOR OPENING FRAME CENTRE RH

37

6G33-20413-AL

REINF DOOR OPENING FRAME CENTRE LH

38

AG33-10120-AA

MEMBER FLOOR SIDE FRONT

39

6G33-9A032-AE

Heatshield, fuel tank

40

W710409S300

Rivet
