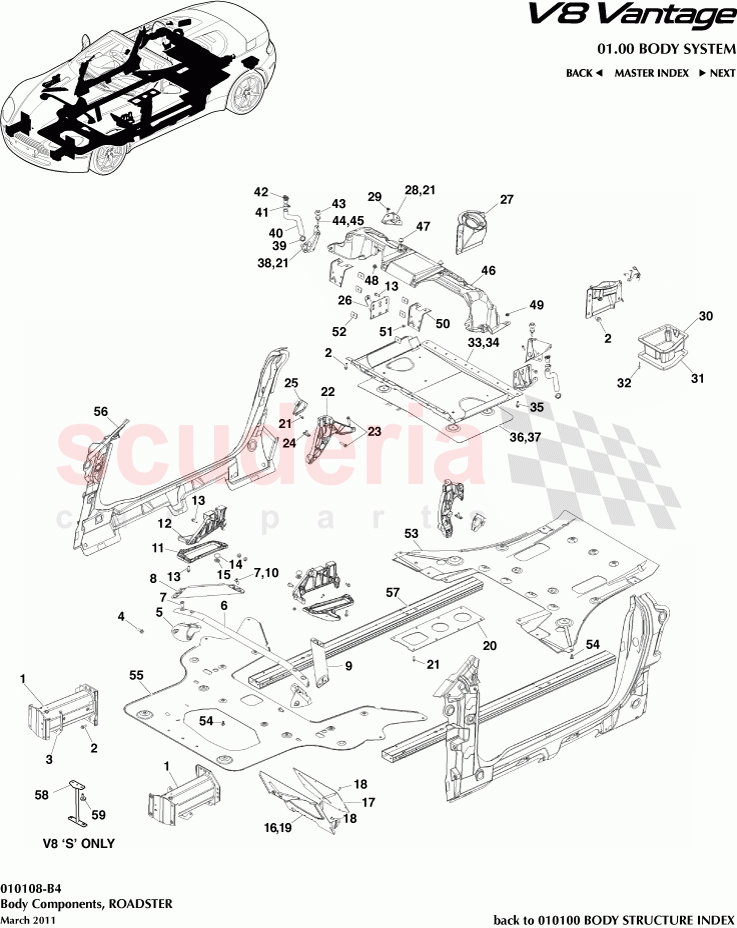

No

Kod

Parça Adı

1

6G33-V17N800-BA

BUMPER FR CRUSH CAN

13

703120

Screw M8-1.25-90 Hex Skt Hd Shoulder

3

6G33-6367912-AB

Nutplate Assy, Crush Can, Lower, RH

3

6G33-6367913-AB

Nutplate Assy, Crush Can, Lower, LH

4

702210-PK

Screw, M10 x 30, Hex Flange Head

5

4G43-108A86-AE

BRACKET FRONT CROSS BRACE RH

5

4G43-108A87-AE

BRACKET FRONT CROSS BRACE LH

6

6G33-108A75-AB

BRACE FRONT CROSS

7

702209

Bolt, M10 x 25, Torque Drive

8

GOAG43-F00198-AA

Reinforcement, Body Front Cross Bar, RH

9

GOAG43-F00199-AA

Reinforcement, Body Front Cross Bar, LH

10

703160-PK

Nut-M10 HEX Flange Chrome Free Pack of 10

11

6G33-5340-BA

Bracket, ECU Mounting, RH

11

6G33-5341-BA

Bracket, ECU Mounting, LH

12

6G33-16798-BA

BRACKET HOOD HINGE SUPPORT RIGHT HAND

12

6G33-16799-BA

BRACKET HOOD HINGE SUPPORT LEFT HAND

14

4G43061B70AB

Cap, dust cover

43

4G43-061B70-AA

CAP DUST COVER

15

4G43-16740-AA

PAD - HOOD ON COWL

16

4G43-111C61-AE

Panel, Dummy Floor Front, RHD

16

9G43111C60AD

Panel, dummy, front floor, LHD

17

4G43-111B48-AB

Panel, Dummy Floor Cover, Front

18

701553

Screw, M6 x 16, Pan Head

19

700116

NUT M6 HEX FLG NYLOC

20

AD23-111K37-CA

REINF CTR TNL

21

703203

Screw M6 x 20 Heex Flange 8 Chrome Free

22

6G33-611D38-BA

Bracket Assembly, Front Seat Belt Retainer, RH

22

6G33-611D39-BA

Bracket Assembly, Front Seat Belt Retainer, LH

23

703142

Bolt, M8 x 38, Hex Flange Head

24

4G43-L243A70-AA

Alignment Pin, Main Bearing Bracket

25

G06G33L53948AE

Bracket, act pivot

26

6G33-5D022-AD

BRACKET REAR SUB FRAME STABILISER

27

6G33-18A000-AD

Member, Rear Shock Absorber Mounting, RH

27

6G33-18A001-AD

Member, Rear Shock Absorber Mounting, LH

28

6G33-L46302-AC

Actuator, tonneau, reinf body, RH

28

6G33-L46303-AC

TONNEAU ACTUATOR REINFORCEMENT BODY LH

54

703141

SCREW M8 x 16 CHROME FREE

30

6G33-L14C445-AF

FUSEBOX VAC FORM

31

6G33-L41400-AB

FUSEBOX VAC FORM GASKET

37

703754

RIVET-BLIND- 4.8x6.4-7.9 ALLOY/S.STEEL

33

6G33-9N172-AE

ASSEMBLY PANEL FUEL TANK COMPARTMENT PT LWR COMP

33

ED23-9N172-BA

ASSY PNL FU/TNK COM

34

4G43-501B0-AC

NUT PLATE REAR SUB FRAME REAR M14

35

702509

STUD M8x23 + M6x14 HEX FLANGE PILOT

36

6G33-9A032-AE

Heatshield, fuel tank

38

6G33N17K902AF

Bracket, bump stop, RH

38

6G33N17K903AF

Bracket, bump stop, LH

39

6G33-58500W04-AB

Grommet, Drain Hose

40

6G33-L82844-AB

REAR QUARTER DRAIN PIPE

41

699094

Clip, Hose, Spring Loaded, 16-25

42

6G33-L80840-AD

Drain Plug, Rear Quarter

44

4G43-16K808-AB

Buffer Assy Hood Bumper-Supt BMP R to Cowl Top OTRPNL

45

702994

Nut, M6, Hex Head Thin

46

CG33-L21327-AA

ROOF STOWAGE COVER FRONT

46

6G33-L21327-BB

ROOF STOWAGE COVER FRONT NON-MMM

46

6G33-L21327-AD

ROOF STOWAGE COVER FRONT

47

6G33-3633038-AB

CONICAL BUMP STOP M6x20

48

6G33-FA0115-AB-PK

Screw and Washer, M6 x 20, Torx Head

49

702944

Nut, M6, Hex Flanged Head

50

6G33-L43218-AE

TONNEAU LATCH BRACKET LH

51

HY53-E804349-AA

M6 X 14 SCREW HEX HD

52

6G33-L111C98-AB

NUTPLATE M8 ROPS MOUNTING

53

BG33-L17C857-AA

SHIELD REAR BUMPER OPENING

53

6G33-L17C857-AE

SHIELD REAR BUMPER OPENING

55

BG33-L11270-BA

REINF FLR PAN FRT

56

6G33L20412AD

Reinforcement, door, RH, body

56

6G33-L20413-AD

REINF DR OPG FRT CTR LH

57

AG33-10120-AA

MEMBER FLOOR SIDE FRONT
