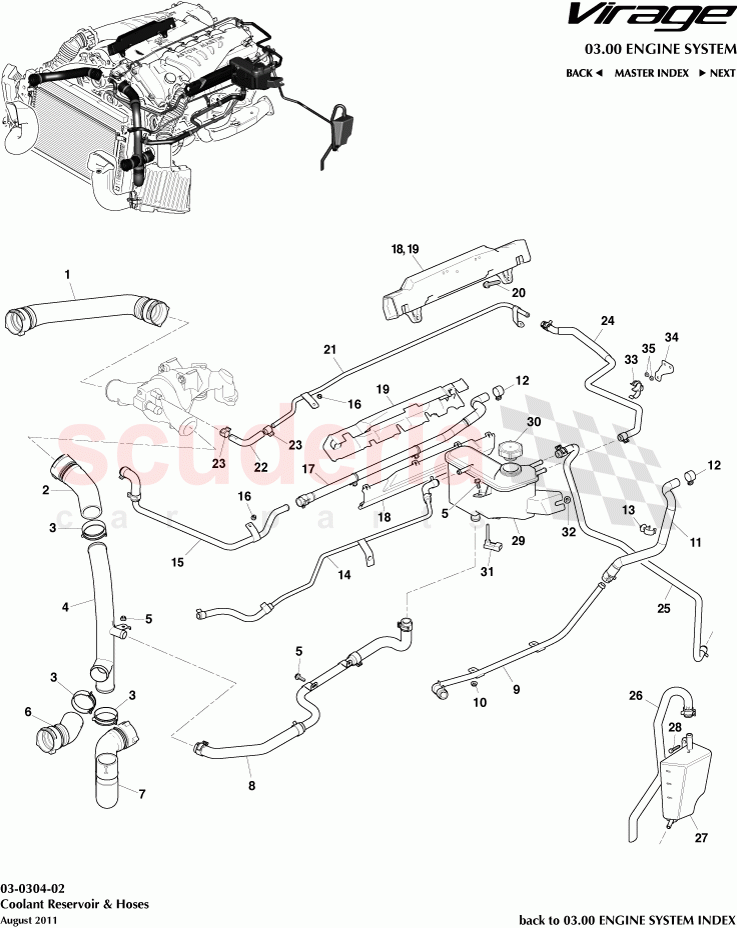

No

Kod

Parça Adı

-

CD33-18D359-AA

Hose Assy, Heater Outlet

-

4G43-2A155-AD

Bracket, Hose Clip, Heater Outlet

-

CD33-18D334-AA

Hose, Heater Inlet

1

8D33-8333-AA

HOSE - RADIATOR

2

CD33-8556-AC

TUB-WTR BYP ASSY

3

CD33-8555-EA

Hose, Bypass Tube to Thermostat

4

702903

Heavy Duty Spring Band Clamp 55 x 15

5

CD33-8555-FB

Tube Assembly

6

CD33-8555-BB

Hose Assembly, Bypass Tube to Water Pump

27

NSS

 Seat Belt Loops Frt/ Rear and Left/Right

8

CD33-8C350-AB

Hose Assy, Engine Coolant Reservoir

9

4G43-8C350-CA

Hose, Make Up Tube to Bypass Tube

12

702902

HEAVY DUTY SPRING BAND CLAMP 27 x 15mm

13

AD23-18674-AB

Tube Assy, Heater Outlet

16

702901

HEAVY DUTY SPRING BAND CLAMP 23 x 15

17

CD33-18D359-BA

Hose Assy, Heater Outlet

18

701335

Clip, Hose Spring, 20 x 15

19

701570

Clip, Swivel 20-24.5mm

20

CD33-8C363-AC

Hose Assy, Radiator Degas

22

4G43-8C363-DA

HOSE - RADIATOR DEGAS ASSY

23

CD33-8C363-AA

Hose, Radiator Degas

24

702904

Spring Clamp, Hose, 17 x 15

25

ED23-8584-AA

HOS ASY THERMO UPR

28

4G43-18D334-BC

HEATER INLET HOSE ASSY - RHD

29

4G43-55-BA

Tie Wrap

30

4G43-6793-BB

Top Cover, Engine Harness

31

4G43-4867-BC

Bottom Cover, Engine Harness

32

703731

Bolt, M8 x 35, Hex Flange Head

33

4G43-8003-EB

Pipe, Cross Over Bleed

34

702295

Nut, M5, Hex Flange Head

35

4G43-8063-AE

Hose, Engine to Supply Tank

36

4G43-8B081-AG

HOSE - RADIATOR SUPPLY TANK OVERFLOW

37

701181

Clip, 16 x 6.5 x 1.5-6

38

4G43-19B518-BC

Tank-Asy Expansion

39

4G43-8101-BA

Pressure Cap Assy

40

1R12-37-10166

Switch, Coolant Level

41

CD33-1660-AA

Spacer, Coolant Reservoir Assy

42

703145

M6 x 30 WSHR HO BOLT ASSY CHROME FREE

43

6G33-TBD2-BA

Reservoir, Coolant Expansion

44

703734

Bolt and Washer M6x25 hex hd

45

4G43-8N029-AG

Hose Assy, Overflow

46

HY53-E804349-AA

M6 X 14 SCREW HEX HD

47

4G43-8003-CA

Hose, Thermo Housing, Cross Over Bleed
